INTRODUCTION

Fiberglass grating is rustproof, slip-resistant, lightweight and easy to install.
It combines corrosion resistance with strength, long life and safety for reliable service in harsh or caustic environments where carbon or stainless steel is not suitable
(chemical processing, refining, offshore, pulp and paper, food and beverage, marine and waste water treatment, electronics, plating and Electric isolated Flooring).



















Advantages
Ø Safety and anti-slip
Ø Superior Ergonomics
Ø Electrical insulating
Ø Fire/Impact/Corrosion Resistant
Ø Light weight and high strength(Bi-directional)
Ø Long Service Life and low maintenance cost

Resin Systems
Fiberglass grating is available in 3 standard resin systems providing differing levels of corrosion protection.All resin systems meet Class 1 Flame Spread Rating per ASTM E-84 test standards.
Ø Ortho Resin: General Purpose Polyester Resin System offers good corrosion resistance at an economical price.
Ø ISO Resin: premium grade Isophthalic Polyester Resin System that provides excellent corrosion protection.
ØVinyl Resin: Vinyl Ester Resin System provides the highest level of corrosion protection.

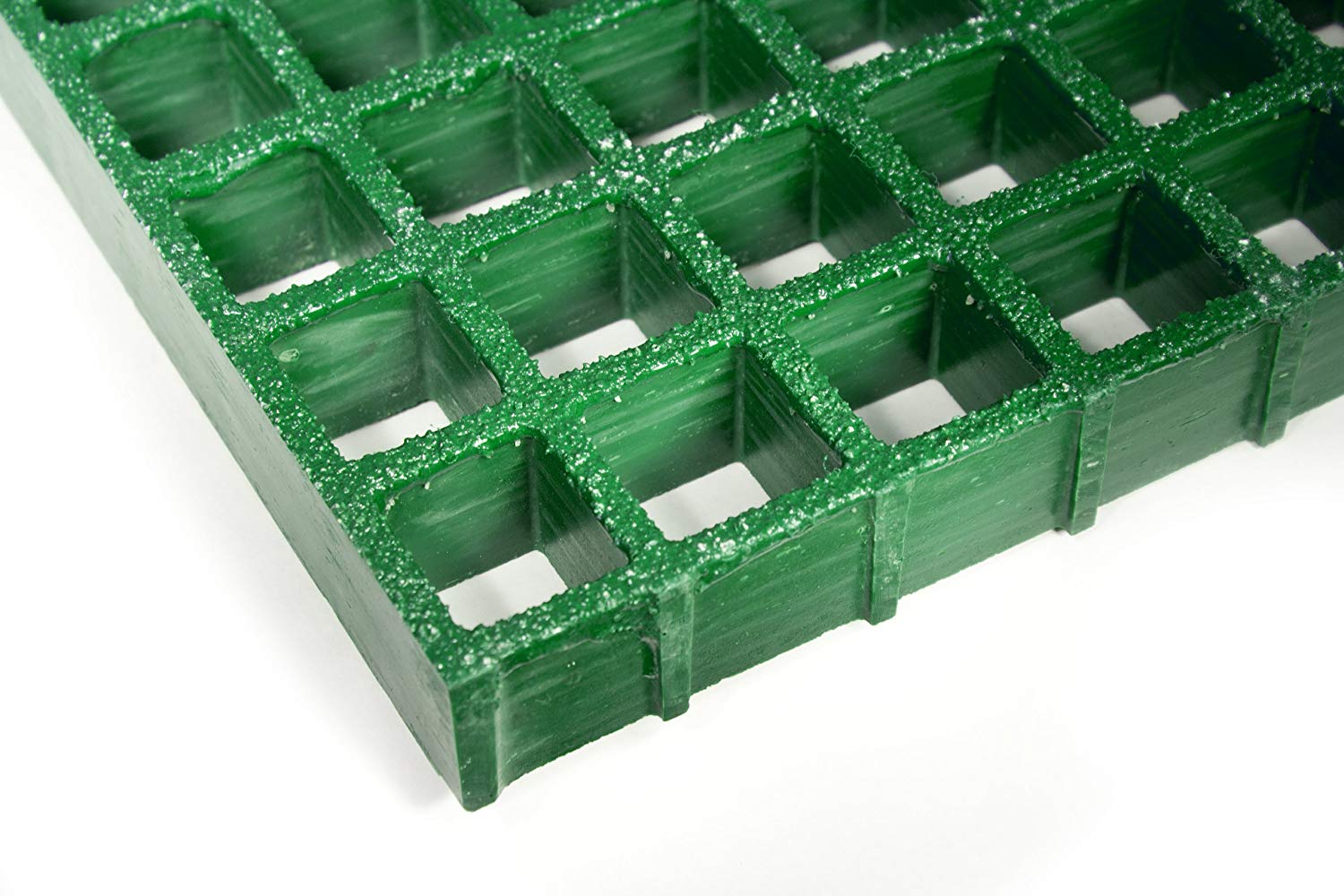

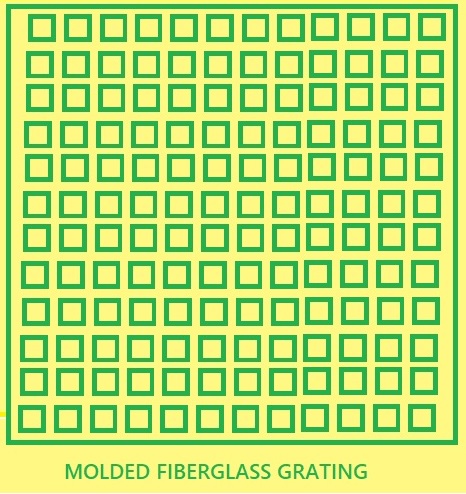

Molding grid surface




JN molded gratings are available in a variety of resins, standard and custom colors, depths, panel sizes and mesh configurations. Surface options include a meniscus or integrally applied grit top, both of which offer superior, slip resistant footing. JN molded grating is used in place of traditional materials for a FRP solution that fits a wide range of applications and environments.

For more information, please feel free to contact me at any time.
