Fastener Clips

Fastener Clips are generally classified into: L type, M type, C type, round cover plate type, J type, G type and the other types

The following is a picture of all shapes: only for reference

L type Clamp

. This lighter duty clip should be specified to hold one load bar to the support for lighter duty loads. It is available for molded and pultruded fiberglass gratings.

M type Clamp

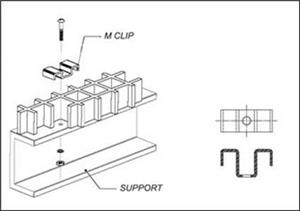

M clips or saddle clips clamp 2 fiberglass grating load bars to the support. This provides excellent holding capability and because of this, are recommended for stair treads and most molded and pultruded fiberglass gratings.

C Type Clips

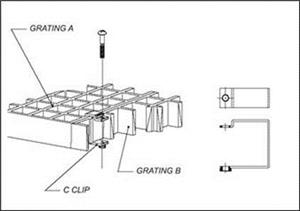

C clips were specifically designed to tie two panels of molded fiberglass gratings together to minimize differential defections when their joints fall between supports. C clips are also used in fiberglass grating leg systems for panel abutments. Lower nut is welded to clip so installation is from top side of fiberglass grating floor

G type Clips

G Clips

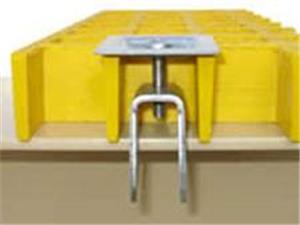

When drilling the support member has to be avoided, G clips offer the solution. The lower jaw of the clip grips the support flange when the bolt is torqued. A heavier top clip then completes the assembly to carry the loads. Providing excellent bidirectional holding capability for molded square mesh fiberglass grating.

W type Clips

W Clips

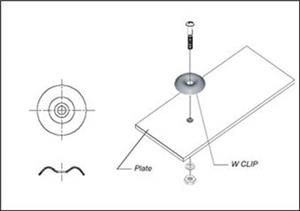

This 1 ½” diameter fastener is used for holding down plates and covered fiberglass gratings. The W clip’s recessed center allows the fastener to sit flush with this ADA compliant (< ¼” high) hold down clip.

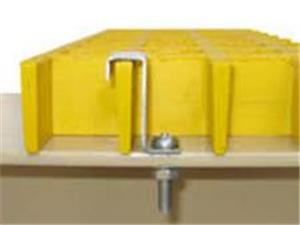

J type Clip
