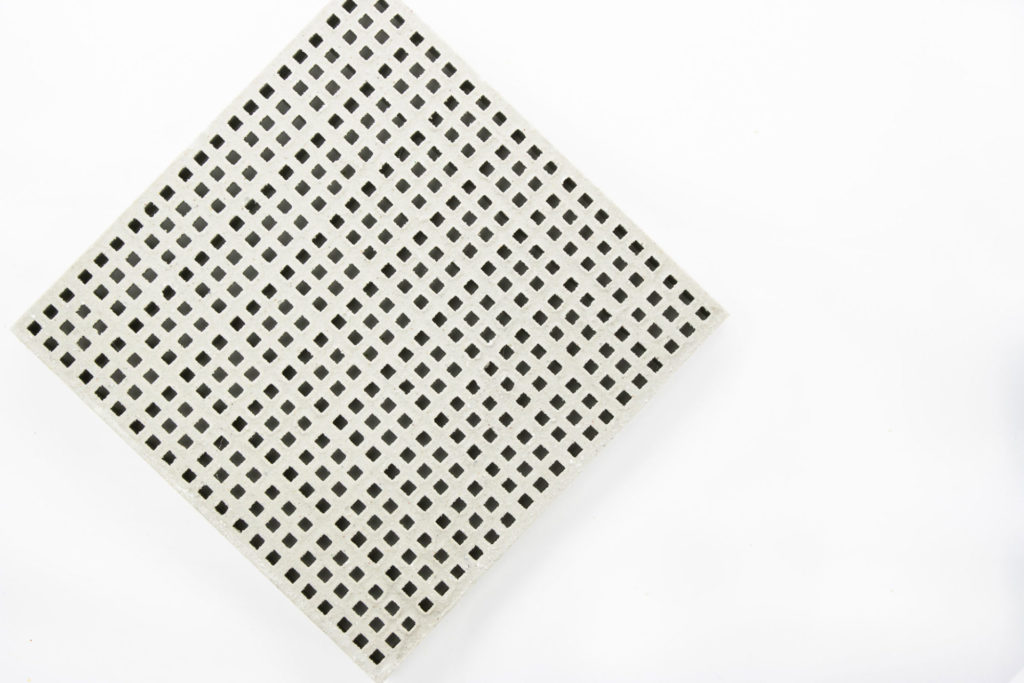

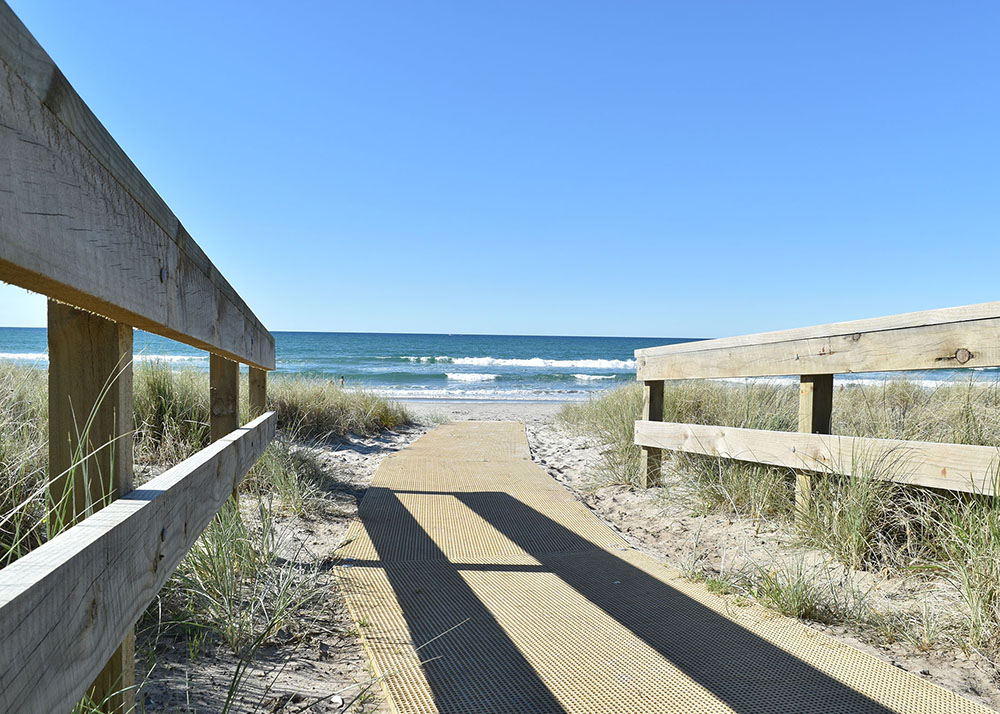

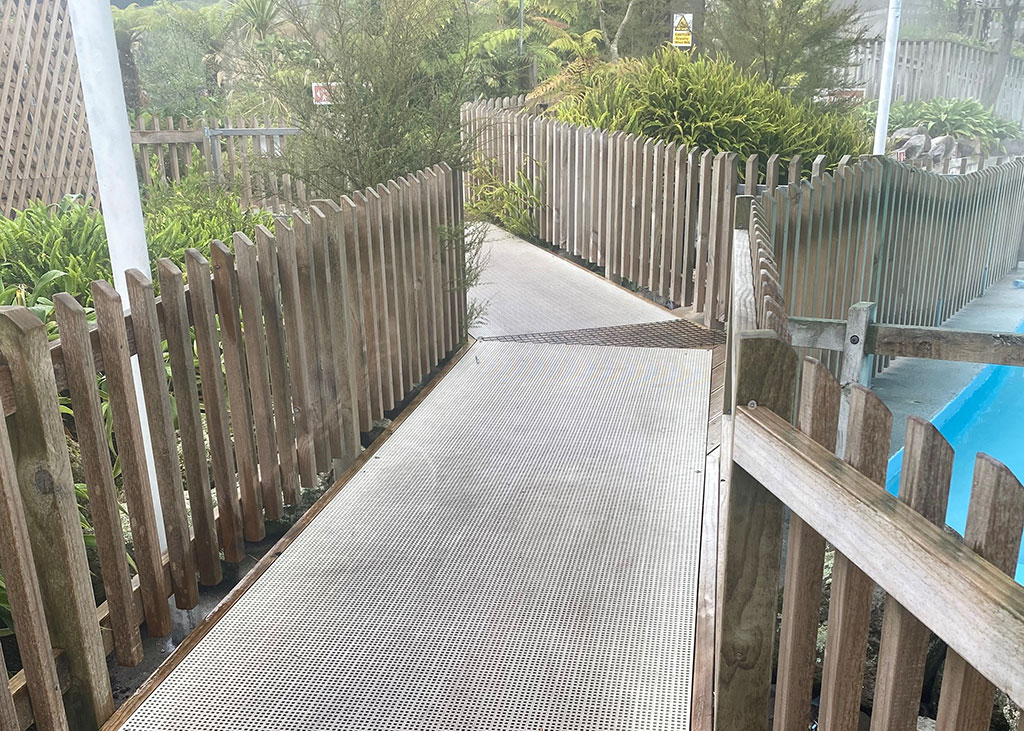

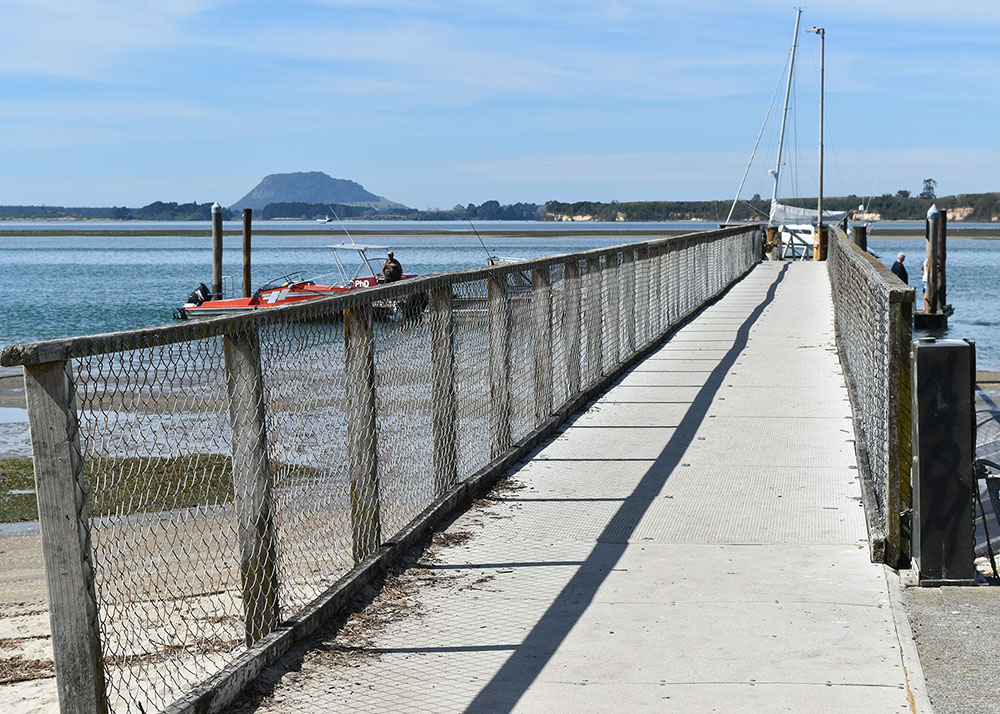

Micro Mesh Our FRP Micro Mesh Grating is ideal for public walkways and boardwalks in commercial and recreational applications. With a 7 mm aperture, it is both aesthetically appealing and a comfortable surface for bare feet. It is durable,...
Our FRP Micro Mesh Grating is ideal for public walkways and boardwalks in commercial and recreational applications. With a 7 mm aperture, it is both aesthetically appealing and a comfortable surface for bare feet. It is durable, low maintenance, easy to install, and provides resistance to slips, fire, and corrosion.
We are New Zealand family-owned and operated, with plenty of stock on-site from our premises in the Bay of Plenty. We provide an in-house cutting service, with our workshop fully equipped with sophisticated cutting processes and fabrication techniques. We ensure our products adhere to NZ standards; please enquire for a copy of the relevant data specs. Our team is always ready to provide technical support and design recommendations. Non-standard sizes and finishes are available.
The colour range shown is an artist impression only, actual colours may vary as per the RAL colour chart
PDF opens in a new window
Load bar spacing: 38 x 38 mm (7 x 7 mm aperture)
30 and 38 mm depth
Dimensions: 3665 (L) x 1226 (W)
Non-standard sizes available upon request, such as our 20 mm thick 3434 (L) x 970 (W)
Isophthalic polyester (ISO) – general purpose grade resin suitable for minimal contact with harsh chemicals
Vinyl Ester (VE) –superior grade resin formulated to withstand frequent contact with harsh chemicals
Fine (barefoot friendly) grit surface available. Our grating products are finished with VE and a silicon carbide grit surface system for optimum adhesion and durability.
Fine (barefoot friendly) and coarse (industrial) grit gradients are possible upon request, please contact us for more information
