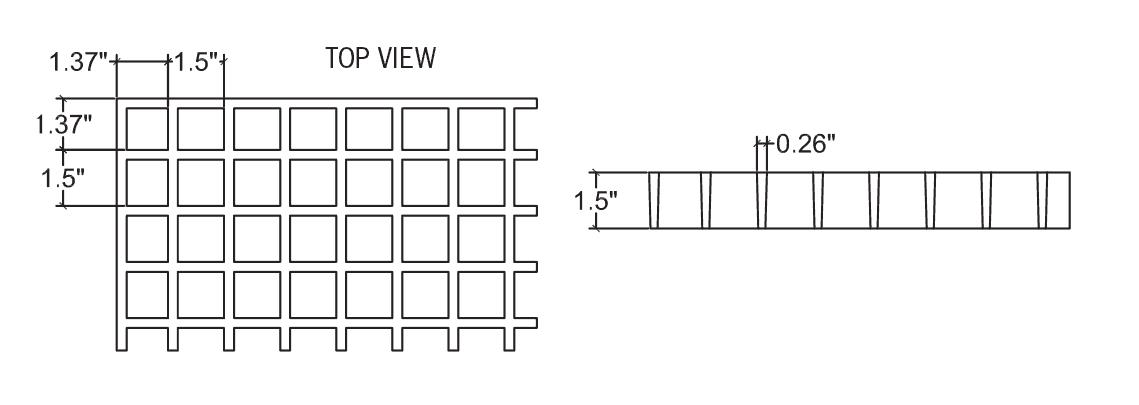

1 1/2″ x 1 1/2″x 1 1/2″(38mm*38mm*38mm)square mesh molded fiberglass grating
Molded Grating is a hand lay-up composite of high resin content and continuous glass fiber strand that is thoroughly wetted out and woven through an open mold.
This method provides Molded Grating with high corrosion resistance and good strength.
Molded Grating is an excellent alternative to metal grating where rust, corrosion, or chemical attack are problems.
The industry standard in both thickness and pattern. The square mesh pattern provides strength in both directions for more efficient utilization and easier fabrication.
FEATURES
-
This is the industry standard workhorse pattern.
-
Standard surface is an embedded grit surface.
-
Meniscus surface also available for select styles.
-
This is a bi-directional grating pattern that can be supported in either direction.
-
Flame retardant class 1, per ASTM e84 test method could be achieved.
-
Custom panel sizes, colors, and composites are available
SPECIFICATIONS
Standard Panels:4005*1525mm(13ft * 5ft)
Open Area: 66%
Stardard Weight: 18.8kg
