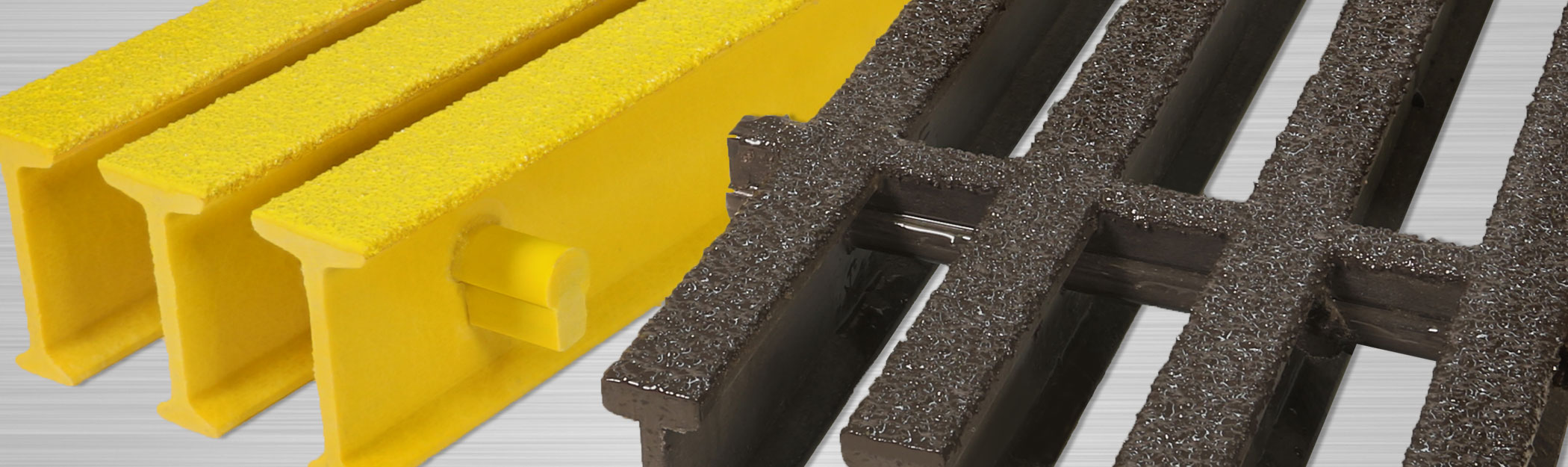

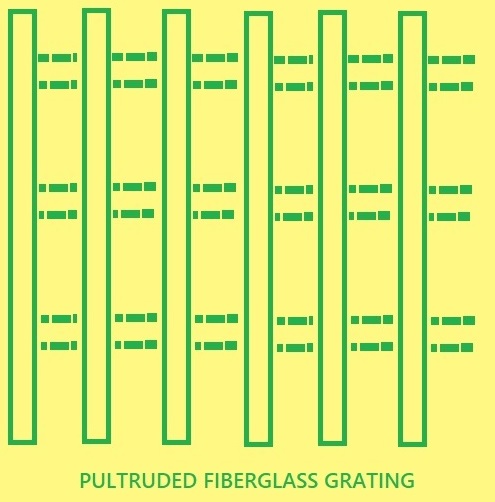

Pultruded Grating is assembled with pultruded I and T sections linked by cross rod per distance into a panel.
The distance is decided by an open area rate. This grating has more fiberglass content compared to FRP Molded Grating, so it has a higher strength.

Advantages
  • Safety and anti-slip,Electrical insulating
  • Superior Ergonomics
  • Fire/Impact/Corrosion Resistant
  • Light weight and high strength
  • Long Service Life and low maintenance cost
Resin Systems
Ø Ortho Resin: General Purpose Polyester Resin System offers good corrosion resistance at an economical price.
Ø ISO Resin: premium grade Isophthalic Polyester Resin System that provides excellent corrosion protection.
Ø Vinyl Resin: Vinyl Ester Resin System provides the highest level of corrosion protection.

Standard Size
No. Type Thickness（mm） Open area（%） Panel Size Weight （kg/m²）
Available Width Available Length
1 T 4025 25 40% 915、1220 2440、3050、3660、6100 12
2 T 5025 25 50% 915、1220 2440、3050、3660、6100 10.5
3 T 6025 25 60% 915、1220 2440、3050、3660、6100 8.5
4 I4025 25 40% 915、1220 2440、3050、3660、6100 16
5 I5025 25 50% 915、1220 2440、3050、3660、6100 13.4
6 I6025 25 60% 915、1220 2440、3050、3660、6100 10.8
7 I4030 30 40% 915、1220 2440、3050、3660、6100 20.1
8 I5030 30 50% 915、1220 2440、3050、3660、6100 17
9 I6030 30 60% 915、1220 2440、3050、3660、6100 14.1
10 I4038 38 40% 915、1220 2440、3050、3660、6100 26.5
11 I5038 38 50% 915、1220 2440、3050、3660、6100 22.3
12 I6038 38 60% 915、1220 2440、3050、3660、6100 18.1
13 ▎4038 38HL(heavy load) 40% 915、1220 2440、3050、3660、6100 44.4
14 ▎5038 38HL(heavy load) 50% 915、1220 2440、3050、3660、6100 37.4
15 ▎6038 38HL(heavy load) 60% 915、1220 2440、3050、3660、6100 30.1
16 T 5050 50 50% 915、1220 2440、3050、3660、6100 17.4
17 T 3350 50 33% 915、1220 2440、3050、3660、6100 22.6
18 ▎4050 50HL(heavy load) 40% 915、1220 2440、3050、3660、6100 57.5
19 ▎5050 50HL(heavy load) 50% 915、1220 2440、3050、3660、6100 48.3
20 ▎6050 50HL(heavy load) 60% 915、1220 2440、3050、3660、6100 38.5
21 ▎7050 50HL(heavy load) 70% 915、1220 2440、3050、3660、6100 31
22 T 5076 76 50% 915、1220 2440、3050、3660、6100 26
23 T 3376 76 33% 915、1220 2440、3050、3660、6100 32
