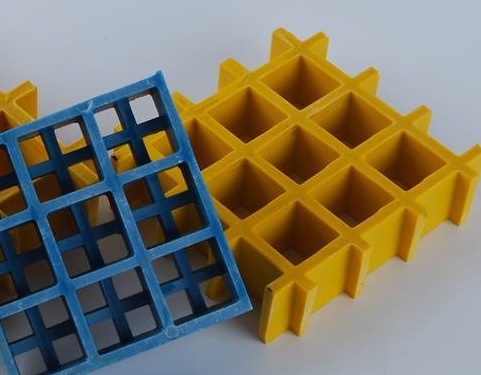

Molded fiberglass grating is manufactured by interfacing reinforcing glass fibre roving within a polyester resin, thermally cured in the mould. Grating produced using this technique yield a product having 30-35% (by total weight) of fiberglass reinforcement. For fire retardant protection, the resin used are complete with fire retardant additive to obtain class 1 fire spread rating of 25 or less as per ASTM E-84. UV inhibitors and antioxidant are included into our recipe of gratings to achieve better UV protection.
Square/rectangular mesh gratings are most of quite traditional configurations in comparsion to other types, but they are still very common in the market, and are both versatile and flexible in industrial application.| Grid Type | No. | Thickness | Mesh Size | Panel Size | Open Area | Weight |
| (Mm) | (Mm) | (Mm) | % | (Kg/M2) | ||
|
Square Mesh |
1 | 13 | 50.8×50.8 | 3660×1220 | 76% | 5 |
| 2 | 15 | 38.1×38.1 | 3660×1220 | 69% | 6.9 | |
| 3 | 20 | 38.1×38.1 | 3660×1220 | 69% | 9.3 | |
| 4 | 20 | 40×40 | 4047×1007 | 70% | 9.2 | |
| 5 | 25 | 38.1×38.1 | 3665×1225 | 69% | 12.3 | |
| 6 | 25 | 40×40 | 4047×1007 | 70% | 12.2 | |
| 7 | 30 | 38.1×38.1 | 4008×1525 | 68% | 14.5 | |
| 8 | 30 | 40×40 | 4047×1007 | 69% | 14.3 | |
| 9 | 38 | 38.1×38.1 | 4005×1525 | 66% | 18.8 | |
| 10 | 38 | 40×40 | 4047×1007 | 67% | 18.6 | |
| 11 | 40 | 40×40 | 4047×1247 | 67% | 20 | |
| 12 | 40 | 50.7×50.7 | 3660×1225 | 69% | 16.7 | |
| 13 | 50 | 50.7×50.7 | 4115×1530 | 69% | 20.8 | |
| 14 | 50 | 50.7×50.7 | 3660×1225 | 68% | 23.5 | |
| 15 | 50 | 49.7×49.7 | 2000×1275 | 68% | 21 | |
| 16 | 50 | 38.1×38.1 | 3660×1220 | 58% | 28.7 | |
| 17 | 50 | 38.1×38.1 | 3665×1225 | 48% | 40.5 | |
| 18 | 60 | 38.1×38.1 | 3660×1220 | 58% | 36.5 | |
| 19 | 60 | 38.1×38.1 | 3670×1230 | 46% | 49.3 | |
| 20 | 63 | 38.1×38.1 | 3660×1220 | 58% | 37.4 | |
| 21 | 63 | 38.1×38.1 | 3670×1230 | 46% | 50.4 | |
| 22 | P 30 | 38.1×38.1 | 3660×1220 | 68% | 14 | |
| 23 | P 38 | 38.1×38.1 | 3660×1220 | 66% | 17.5 | |
| 24 | P 50 | 50.7×50.7 | 3660×1225 | 68% | 21.5 | |
|
Rectangle Mesh |
25 | 25 | 25×100 | 3007×1009 | 67% | 13.7 |
| 26 | 25 | 25.4×101.6 | 3660×1220 | 67% | 12.5 | |
| 27 | 25 | 101.6x25.4 | 3665×1225 | 67% | 12.2 | |
| 28 | 30 | 152.4×25.4 | 3665×1226 | 68% | 16.1 | |
| 29 | 30 | 101.6×38.1 | 3660×1220 | 76% | 11.4 | |
| 30 | 38 | 152.4×25.4 | 3665×1226 | 68% | 20.4 | |
| 31 | 38 | 101.6×38.1 | 3660×1220 | 76% | 14.5 | |
| 32 | 40 | 220×60 | 2207×1507 | 85% | 9.2 | |
| 33 | 40 | 152.4×38.1 | 3660×1220 | 72% | 16.5 | |
| 34 | 50 | 152.4×38.1 | 3660×1220 | 72% | 20.8 | |
